Automatic Door Glass: Repair, Replacement & ADA Compliance

Automatic doors are a standard feature in DMV commercial buildings — from office towers in Tysons Corner and downtown DC to medical facilities in Bethesda and retail centers in Columbia. The glass panels in these doors face unique demands: they must withstand thousands of open-close cycles daily, maintain safety compliance, provide thermal performance, and present a clean professional appearance.

Automatic door glass differs from standard architectural glass in several important ways. It must be rated for the specific door system (sliding, swinging, or revolving), meet safety glazing requirements for the door type, and withstand the mechanical stresses of repeated automated operation. Using incorrect glass in an automatic door system creates safety hazards and premature failure.

Virginia Glass Windows specializes in automatic door glass replacement and maintenance across the Washington DC metropolitan area. We work with all major automatic door manufacturers and maintain inventory of the most common glass specifications for fast turnaround on commercial replacements.

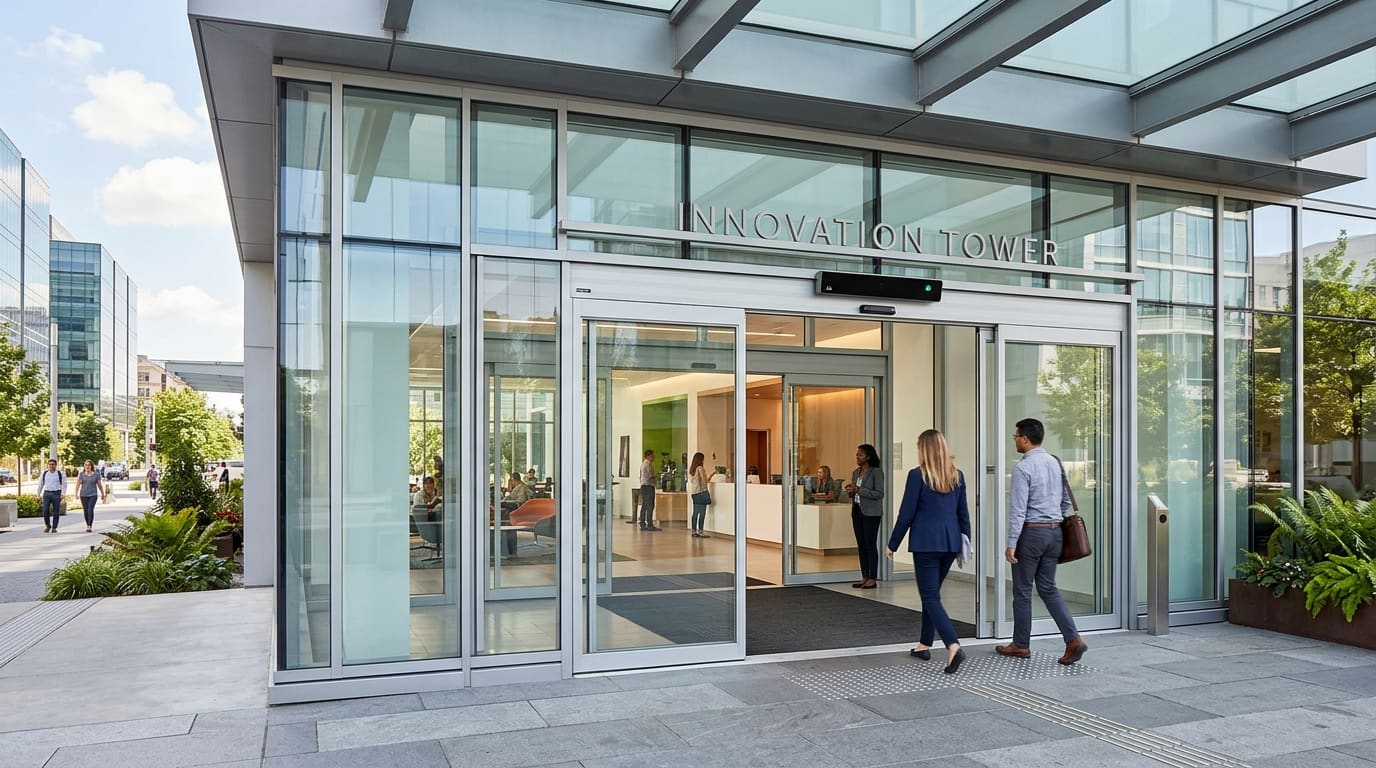

Automatic sliding doors are the most common automatic door type in DMV commercial buildings. Typically consisting of two or four glass panels that slide horizontally on an overhead track, these systems are found at the entrances of office buildings, hospitals, grocery stores, hotels, and retail establishments throughout the region. The glass panels slide past each other or into wall pockets, requiring precise sizing and consistent thickness.

Glass specifications for automatic sliding doors typically require 1/4-inch or 3/8-inch tempered safety glass meeting CPSC 16 CFR 1201 Category II. For insulated configurations, the total unit thickness must match the door system specifications exactly — even 1/16-inch deviation can cause operational problems with the roller carriages and guide channels. Low-E and tinted glass options are available for energy-efficient commercial entries.

Virginia Glass Windows maintains relationships with all major automatic sliding door manufacturers including Assa Abloy, Dorma, Stanley Access Technologies, and Nabco. We stock common glass sizes for popular systems and can fabricate custom sizes within 24 to 48 hours for emergency replacements. Our technicians understand the mechanical interface between the glass and the door operator, ensuring proper fit and safe operation.

Automatic swinging doors are common in DMV buildings where sliding doors are impractical — narrow entries, historic buildings where the exterior appearance must be maintained, and facilities requiring fire-rated door assemblies. The glass in automatic swinging doors must withstand the dynamic forces of powered opening and closing, including wind-load resistance when the door is in the open position.

Glass for automatic swinging doors is typically tempered or laminated safety glass, with thickness determined by the door size and wind load requirements. Full-lite (all glass) automatic swinging doors require heavier glass — typically 3/8-inch to 1/2-inch tempered — to provide the structural stiffness needed for proper automatic operator function. Insulated glass units in automatic swinging doors must be bonded into the door frame rather than mechanically glazed to withstand repeated operation.

ADA compliance is critical for automatic swinging doors. The door must provide at least 32 inches of clear width, swing speed must not exceed 3 seconds from 70 degrees open to the closed position (for exterior doors), and safety sensors must prevent the door from striking pedestrians. Virginia Glass Windows ensures that glass replacements in automatic swinging doors maintain proper weight balance and operator calibration.

Revolving doors are architectural features in many premium DMV commercial buildings, particularly in downtown Washington DC, Rosslyn, Bethesda, and Tysons. The glass panels in revolving doors — both the curved enclosure walls and the flat wing panels — require specialized fabrication. Curved glass for revolving door enclosures is heated and bent to precise radii, a process that limits the available glass types and coatings.

Wing panel glass in revolving doors must be balanced precisely. Any significant weight difference between wings causes uneven rotation and premature wear on the drive mechanism. When replacing a single wing panel, Virginia Glass Windows verifies that the replacement glass matches the weight and thickness of the remaining panels. For safety, all revolving door glass must be tempered or laminated.

Revolving door glass replacement is a specialized service that requires coordination with the building management, temporary entry provisions for building occupants, and precise installation to maintain the tight tolerances that revolving doors demand. Virginia Glass Windows provides turnkey revolving door glass replacement including measurement, fabrication, scheduling, and installation with minimal disruption to building operations.

Automatic door safety is governed by ANSI/BHMA A156.10 (power-operated pedestrian doors) and ANSI/BHMA A156.27 (power-operated revolving doors). These standards specify safety sensor requirements, closing force limits, and emergency breakout provisions. In the DMV area, building inspectors verify compliance with these standards during certificate of occupancy inspections and periodic commercial building reviews.

Modern automatic doors use multiple sensor types: presence sensors (overhead infrared or microwave) detect approaching pedestrians and trigger the door to open, safety sensors (light curtains along the door edges) prevent the door from closing on someone in the doorway, and motion sensors monitor the swing path of swinging doors. All sensors must be calibrated and tested regularly.

Glass selection affects sensor performance. Heavily tinted or reflective glass can interfere with infrared sensors. Virginia Glass Windows coordinates with the automatic door service company when selecting replacement glass to ensure sensor compatibility. We also verify that replacement glass does not obstruct safety sensor fields, maintaining the safe operation of the automatic door system.

The Americans with Disabilities Act requires accessible entry at commercial buildings, and automatic doors are a primary means of achieving this requirement. ADA standards specify clear opening width (minimum 32 inches for single doors, 36 inches preferred), opening speed, closing speed, and maneuvering clearances. Glass doors must include visible markings to alert visually impaired users.

For automatic sliding doors, the glass panels must not create a protruding object hazard when parked in the open position. The bottom track must be flush with the adjacent floor surface or have a maximum 1/4-inch threshold height. Break-out provisions must allow manual egress during power failures — this requirement affects how the glass panels are mounted and how the door tracks are configured.

Virginia Glass Windows understands the intersection of ADA requirements and automatic door glass systems. When we replace glass in an automatic door, we verify that the installation maintains ADA compliance including clear width, visibility markings, and break-out function. Contact Virginia Glass Windows at (703) 470-7867 for automatic door glass service.
